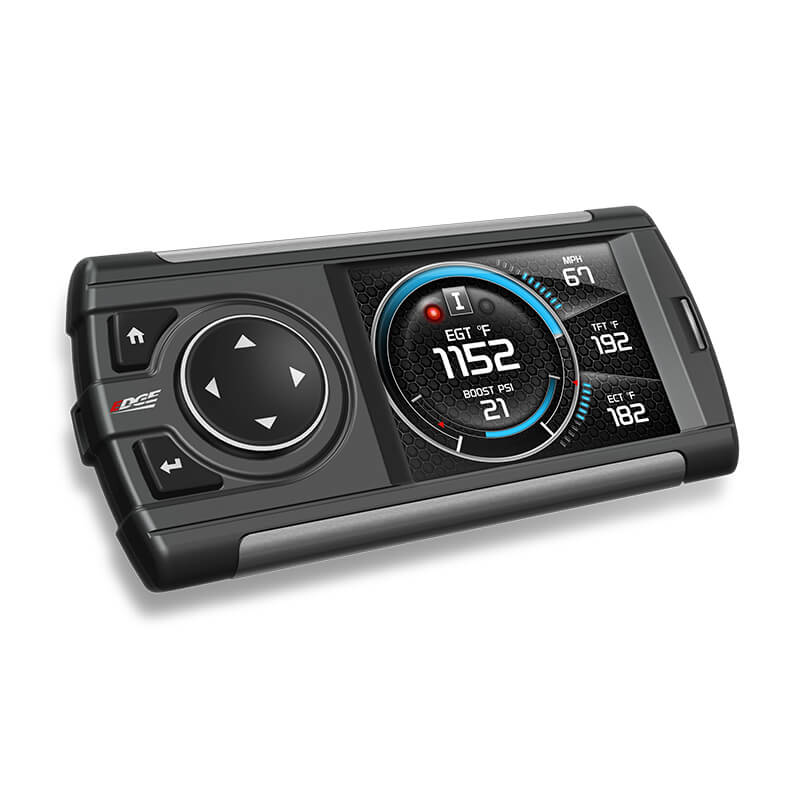

Edge Products proudly announces the release of the Juice with Attitude Color Screen (CS) for trucks. The Juice with Attitude CS product offer the same great features and benefits users have come to expect from Edge Products along with a whole host of additional features! The CS device provides you with an interface to change the performance programming on your vehicle as well as gives you a multi-color touch screen display which allows you to monitor multiple vehicle parameters in real time. It is equipped with a large touch screen, a USB port (for PC communication and electronic updates), a 16-pin connector (for main vehicle communication), a video-in jack, and a six-pin accessories connector which allows you to further extend the capabilities of the device (see the accessories page in the back of the manual).

GAUGES

When used with the Attitude CS monitor the unit is a comprehensive gauge package that stays mounted in the cab of the truck and displays up to eight from dozens of available parameters at a time.

Boost, EGT, Barametric PSI, Speed MPH, Engine Coolant Temperature, Gear, Air Intake Temperature, Load%, Slip , Transmission Temperature, Throttle%, Turbo Boost PSI, RPM, Backdown.

Tune Levels:

• Level 0: Stock;
• Level 1: 40 Horsepower - 150 Foot Pounds of Torque;
• Level 2: 60 Horsepower - 180 Foot Pounds of Torque;
• Level 3: 75 Horsepower - 200 Foot Pounds of Torque;
• Level 4: 90 Horsepower - 250 Foot Pounds of Torque;
• Level 5: 125 Horsepower - 325 Foot Pounds of Torque;
• Level 6: 150 Horsepower – 350 Foot Pounds of Torque;

Hot Unlock Code plus additional fee required for level 6. For pricing information and to get the unlock code you must complete a waiver located under hot unlock form.

The CS device provides you with an interface to change the performance programming on your vehicle as well as gives you a multi-color screen display which allows you to monitor multiple vehicle parameters in real time. It is equipped with a full color screen, a Menu button, Up and Down Arrow button, an Enter button, USB port (for PC communication and electronic updates), a 16-pin connector (for main vehicle communication), and a six-pin accessory connector. The windshield mount supplied with your CS/CTS kit is designed to give you fexibility in mounting your device anywhere you’d like on your windshield. It is equipped with a locking suction cup, a vertically adjustable arm, and a 180 pivot head which allows you to fne tune the viewing angle to your preference.

FEATURES:

• - 6 On-the-Fly Adjustable Power Levels*;
• - Full-color, high-resolution, 2.4 inch button-controlled screen (CS);
• - Up to an Additional 150 HP and 350 ft lb Torque*;
• - Increase Fuel Economy*;
• - Greatly Improves Drivability;
• - Enhances Towing Performance;
• - Excellent Throttle Response;
• - Easy Instillation;
• - Ships with a universal suction cup mount;
• - Compatible with all Edge custom dash kit pods (sold separately);
• - Includes light sensitivity meter to dim screen as ambient light decreases;
• - Internet Updateable (Attitude only);
• - Hot Unlock Codes available to unlock additional performance (additional fee and waiver required).
