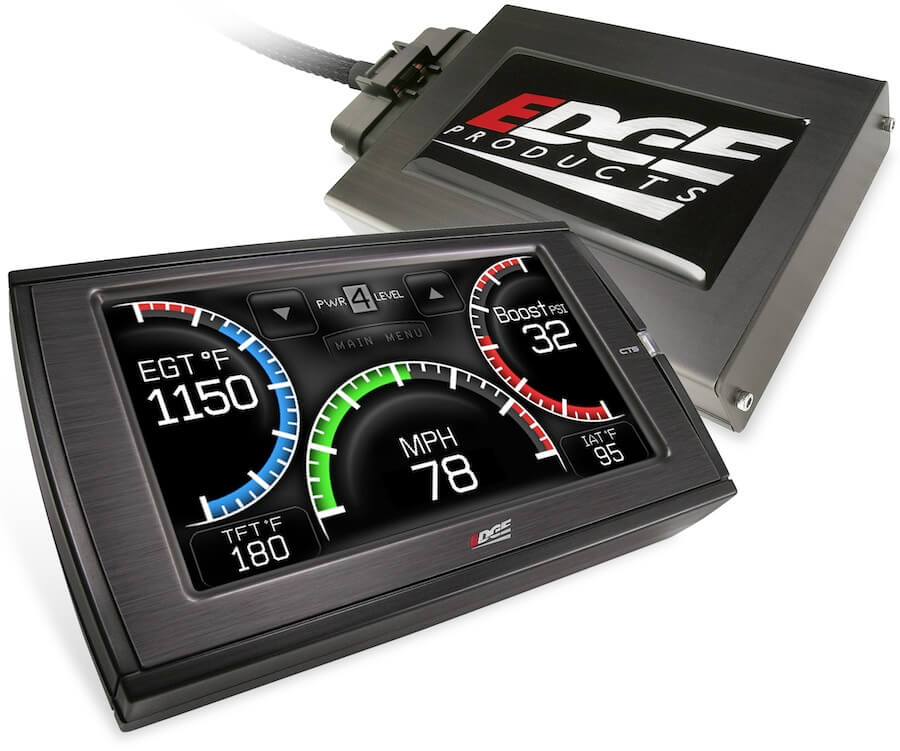

The Juice with Attitude CTS product offer the same great features and benefits users have come to expect from Edge Products along with a whole host of additional features! The CTS device provides you with an interface to change the performance programming on your vehicle as well as gives you a multi-color touch screen display which allows you to monitor multiple vehicle parameters in real time. It is equipped with a large touch screen, a USB port (for PC communication and electronic updates), a 16-pin connector (for main vehicle communication), a video-in jack, and a six-pin accessories connector which allows you to further extend the capabilities of the device (see the car accessories page in the back of the manual).

FEATURES:

• - 6 On-the-Fly Adjustable Power Levels*;
• - Full-color, high-resolution, 4.3 inch touchscreen (CTS);
• - Up to an Additional 150 HP and 350 ft lb Torque*;
• - Increase Fuel Economy*;
• - Greatly Improves Drivability;
• - Enhances Towing Performance;
• - Excellent Throttle Response;
• - Easy Instillation;
• - Ships with a universal suction cup mount;
• - Compatible with all Edge custom dash pods (sold separately);
• - Includes light sensitivity meter to dim screen as ambient light decreases;
• - Internet Updateable (Attitude only);
• - Hot Unlock Codes available to unlock additional performance (additional fee and waiver required).

• Level 0: Stock;
• Level 1: 40 Horsepower - 150 Foot Pounds of Torque;
• Level 2: 60 Horsepower - 180 Foot Pounds of Torque;
• Level 3: 75 Horsepower - 200 Foot Pounds of Torque;
• Level 4: 90 Horsepower - 250 Foot Pounds of Torque;
• Level 5: 125 Horsepower - 325 Foot Pounds of Torque;
• Level 6: 150 Horsepower – 350 Foot Pounds of Torque;

Hot Unlock Code plus additional fee required for level 6. For pricing information and to get the unlock code you must complete a waiver located under hot unlock form.

The CTS device provides you with an interface to change the performance programming on your vehicle as well as gives you a multi-color screen display which allows you to monitor multiple vehicle parameters in real time. It is equipped with a full color screen, a Menu button, Up and Down Arrow button, an Enter button, USB port (for PC communication and electronic updates), a 16-pin connector (for main vehicle communication), and a six-pin accessory connector. The windshield mount supplied with your CS/CTS kit is designed to give you fexibility in mounting your device anywhere you’d like on your windshield. It is equipped with a locking suction cup, a vertically adjustable arm, and a 180 pivot head which allows you to fne tune the viewing angle to your preference.

GAUGES

When used with the Attitude CTS monitor the unit is a comprehensive gauge package that stays mounted in the cab of the truck and displays up to eight from dozens of available parameters at a time.

• - Boost;
• - EGT;
• - Barametric PSI;
• - Speed MPH;
• - Engine Coolant Temperature;
• - Gear;
• - Air Intake Temperature;
• - Load%;
• - Slip %;
• - Transmission Temperature;
• - Throttle%;
• - Turbo Boost PSI;
• - RPM;
• - Backdown;

SAFETY FEATURES

• - Automatic Defueling to Prevent Excessive EGT, Boost and Transmission Slip*;
• - Turbo Timer* (allows turbo to cool before truck shuts off);
• - Cold Engine Protection (no extra fuel is added until the engine is warm);
• - User-Adjustable Audible Alert Settings;

IMPROVED DRIVEABILITY FEATURES

• - Low-Boost Fueling Adjustment;
• - Shift Defuel Setting*;
